Description
PRECISE CONTROL OF LIGHT
Custom-engineered optics direct light precisely where needed while minimizing glare and spill light. Makes club and neighbours happy.
Specs
| Service: Lighting and circuitry design, Dialux simulation, auto CAD layout | Application: All Sport Stadiums,Skiing slope, Golf course, Parking lots, High Mast, Ports, Plaza, Indoor&Outdoor lighting etc |
| Light Source: SMD | Luminous Efficacy(lm/w): 150 |
| Power Supply: Meanwell, Inventronics | Working Lifetime(Hour): 80,000 |
| Color Temperature(CCT): 2700-6500K | CRI(Ra): ＞70, 80, 90 |
| Input Voltage(V): AC 100-277V, customized AC 347-480V | Working Temperature(℃): -40-50 |
| Beam Angle(°): 15°,30°,60°,40×90° | IP Rating: IP66 |
| Warranty(Year): 5Years | Certification: TUV, CE, RoHS, SAA, ETL |

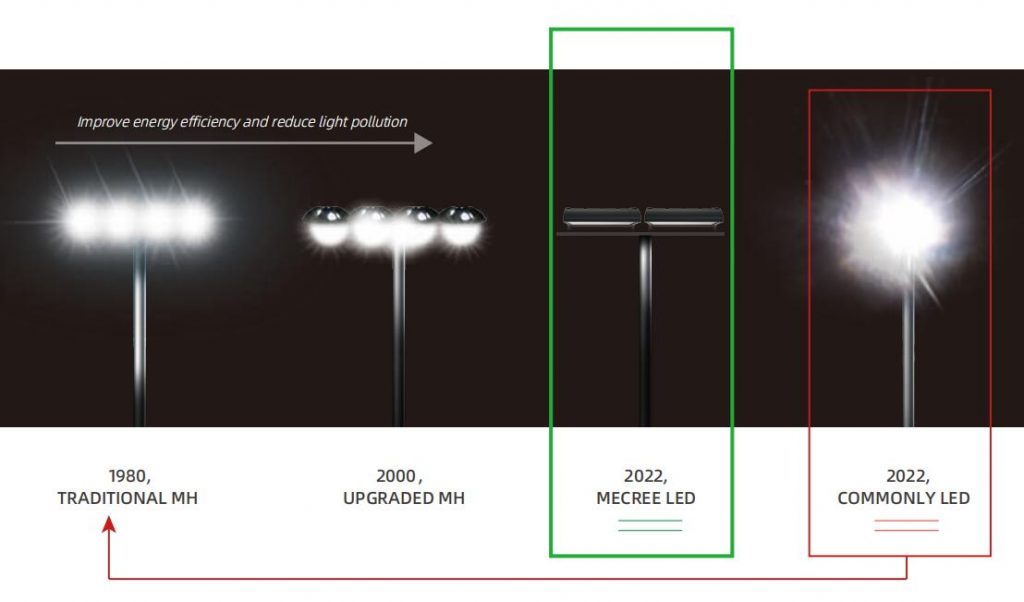

PRECISE CONTROL OF LIGHT 1

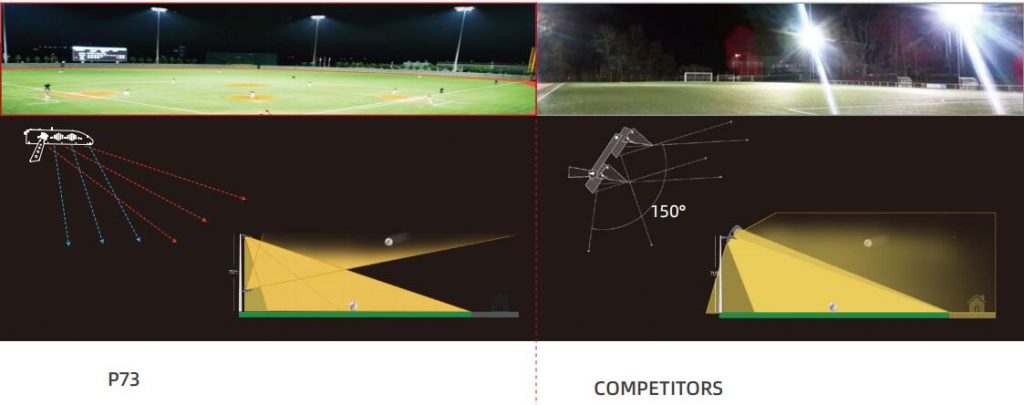

-OPTICS 10X BETTER
P73: Our precisely engineered optics of polarized light aim light directly onto the fifield of play, to shine uniformly and to minimize glare. Outdoor venues benefifit from spill light control, no more skyglow and no more complaints from the neighbors.
VS
Competitors: Such light shield is useless,just misleading customers. As tested it will cause 30% reduction of light output,while 70% still have high overflflow, unbearable strong glare and waste energy, outdated reflflective technology.
PRECISE CONTROL OF LIGHT 2

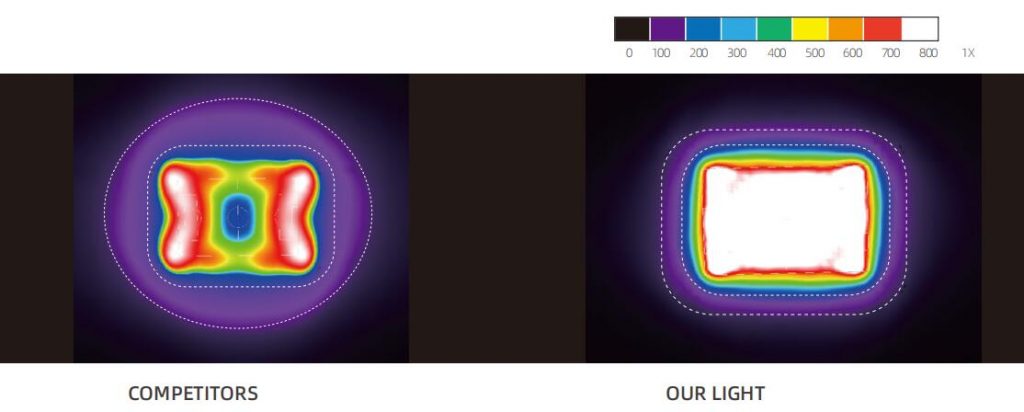

-SIMULATION DESIGN
The competitors’ lighting system may provide initial light levels, but difficult to contain illumination to the field, This presents challenges in reducing the spill light surrounding the field.
VS
Our precise control of lighting system providing the perfect combination of optical accuracy and cutoffff. When aimed on the fifield, this results in excellent light levels and uniformity throughout the life of the system, as well as a signifificant control in spill light.

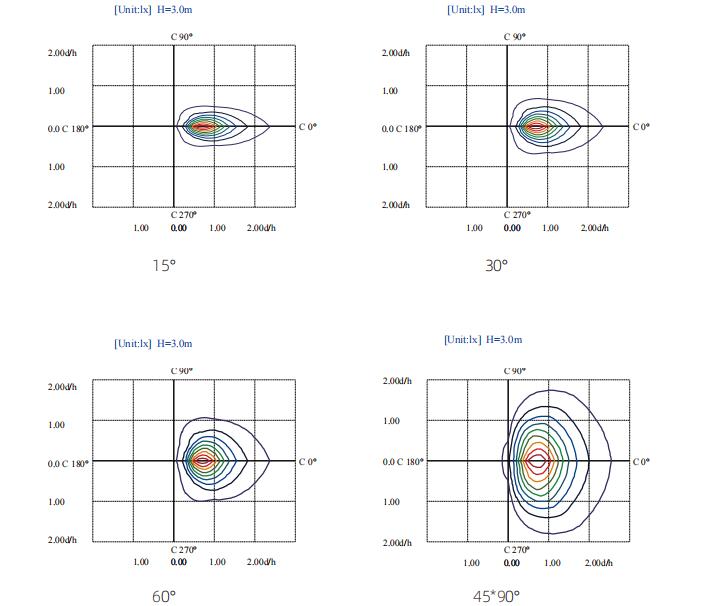

PRECISE CONTROL OF LIGHT 3
-LIGHTING PATTERN
Different lighting patterns are designed to meet the needs of all difffferent sites and create unprecedented venue lighting.

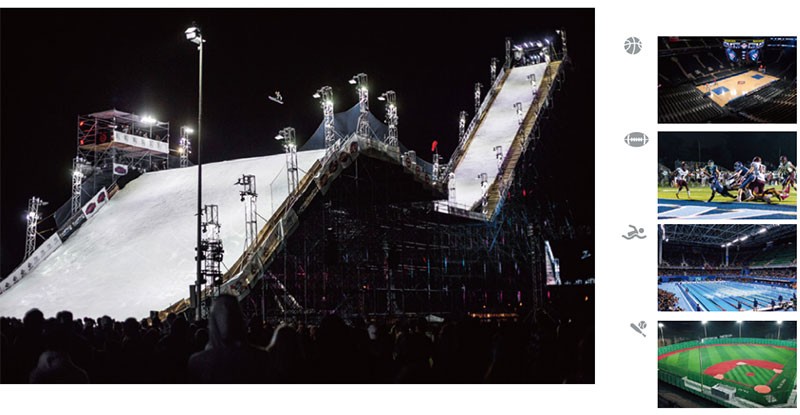

APPLICATION
Applied in all types sports fifields, football, basketball, golf and tennis court, racetrack, parking lot, playground, tower, high mast etc
Welcome to contact us via [email protected] to get your Stadium Lighting Plan – For Free.
